Network PoE switch

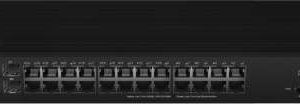

• 24 ports L2 Managed PoE switch provides 24nos.
  10/100/1000 Base-T PoE + ports + 2 nos. 1000Base-X SFP ports + 1xRJ45 Console.
• Fan-less Design with Operating Temperature of -40 C ~ 75 C. MTBF of 100000 hours.
• Supports IEEE802.3af/at up to single output power of 30W with advanced SAFC function to prevent damage to devices without PoE function and over currect short-circuit protection.
  L2 Network Management Console port, CLI, Telnet & Web-based network management and PoE management.
• Improves network flexibility and enhances the reliability and security of industrial networks in harsh environments such as rail transit, safe city projects, intelligent transportation and outdoor monitoring.
• Support high-speed data forwarding, perfectly designed for large flow of video data forwarding in security surveillance.
• Support fast ring, self-healing in 20ms.
• Support QoS, VLAN, Storm Suppression and Smart Auto Reboot for inactive PoE ports.
• Excellent circuit isolation protection, lightning protection up to 8 kV ~ 15kV.

• 24 ports PoE L2 Managed switch provides 24nos. 10/100/1000 Base + PoE ports + 4 nos. 1000Base-X, 4 SFP ports, 380W
• Fan-less Design with Operating Temperature of -40C ~ 75C. MTBF of 100000 hours.
• Supports IEEE802.3af/at up to single output power of 30W with advanced SAFC function to prevent damage to devices without PoE function and over currect short-circuit protection.
• L2 Network Management Console port, CLI, Telnet & Web based network management and PoE management
• Improves network flexibility and enhances the reliability and security of industrial networks in harsh environments such as rail transit, safe city projects, intelligent transportation and outdoor monitoring.
• Support high-speed data forwarding, perfectly designed for large flow of video data forwarding in security surveillance
• Support fast ring, self-healing in 20ms.
• Support QoS, VLAN, Storm Suppression and Smart Auto Reboot for inactive PoE ports.
• Excellent circuit isolation protection, lightning protection up to 8 kV ~ 15kV.

• Providing 1000Mbps SFP and 8-ports 10/100Mbps PoE+ terminal under standard IEEE802.3af/at
• Long distance UPLINK RJ45 Port
• Transmission distance up to 150m
• CCTV Mode: Downlink up to 250m
• Power Adapter Voltage: DC 48V-55V Consumption: af standard < 120W, at standard < 240W (Separate power supply required) • PoE Protocol: IEEE802.3af\at protocol • IEC4kV lightning protection, level 3 ESD protection.

• Long Distance transmission
• Specially designed for IP CCTV Application. Uplink port 100 meters, POE+ Port up to 150 meters.
• Wide working temperature -40 to 75
• Downlink and uplink both Gigabit ,10/100/1000 Mbps
• POE+ switch with RJ 45 Port and Optical SFP module
• Support IEEE802.3 af/at standard, POE & PoE+
• Redundant power supply

• 24 PoE+ Gigabit downlink Ethernet ports
• 4 10G uplink SFP ports
• Support Web layer-3 network management and PoE management
• Switching Capacity 128 Gbps
• Support IEEE 802.3 af/at.
• Max PoE budget 450W

• 24 Gigabit downlink Ethernet ports
• 4 10G uplink SFP ports
• Support Web layer-3 network management
• Switching Capacity 128 Gbps

• L2 Managed 24*10/100Base-TX PoE+ Ethernet ports, 2*10/100/1000Base-T Ethernet ports and 2*10/100/1000Base-X/SFP
• 8.8 Gbps switch capacity
• 6.55 Mpps throughput
• 390W PoE bidget
• Ethernet ports support PoE+, each port supports max. 30W output
• Support power consumption indication (LED indicates power output status)
• Support manage PoE on/off and power consumption setting via Web
• IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3 af/at standard
• 4K MAC address,2.75Mb cache

• L2 Managed 16*10/100/1000Base-TX PoE+ Ethernet ports, 2*10/100/1000Base-T Ethernet ports, and 2*10/100/1000Base-X/SFP
• 40 Gbps switch capacity
• 30 Mpps throughput
• 270W PoE budget
• Ethernet ports support PoE+, each port supports max. 30W output
• Support power consumption indication (LED indicates power output status)
• Support manage PoE on/off and power consumption setting via Web
• IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3 af/at standard
• 16k MAC address, 12 Mb cache

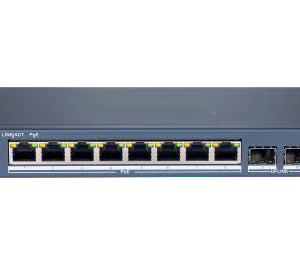

• 8*10/100/1000 Base-TX PoE+ Ethernet ports, 2*10/100/1000 Base-T Ethernet ports and 2*10/100/1000 Base-X/SFP
• 24 Gbps switch capacity
• 18 Mpps throughput
• 135W PoE budget
• Ethernet ports support PoE+, each port supports max. 60W output
• Support power consumption indication (LED indicates power output status)
• Support manage PoE on/off and power consumption setting via Web
• IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3 af/at standard
• 8k MAC address, 4 Mb cache

• 8.8 Gbps switch capacity
• 6.55 Mpps throughput
• 390W PoE bidget
• Ethernet ports support PoE+, each port supports max. 30W output
• Support power consumption indication (LED indicates power output status)
• Support manage PoE on/off and power consumption setting via Web
• IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3 af/at standard
• 4k MAC address, 2.75Mb cache

• Provide 28-gigabit RJ45 ports or SFP ports, 2 RJ45 & 2 SFP fixed ports, two 8 ports pluggable modules optional
• Flexible modular design, provides 8 gigabit SFP ports, 8 gigabits RJ45, two pluggable modules optional
• Support IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T, IEEE802.3z 1000BASE-SX/LX, IEEE802.3 X
• Auto MDI/MDIX function
• AC100V-240V input, built-in redundant power supplies
• Switch capacity: 70Gpbs
• MAC table:16K
•Support 6KV lightning protection, ESD and anti-interference.
